A limited footprint does not have to mean limited living. This small plot annexe case study examines a representative brief many homeowners face: creating a genuinely independent space for a family member on a garden plot where every metre, boundary and access route matters.
The challenge is rarely just fitting a building into the available area. A successful annexe must feel calm, private and permanent, while responding to planning considerations, Building Regulations, drainage, neighbours, daylight and the practical realities of getting materials onto site. That calls for more than selecting a building size from a brochure. It calls for a design-led response to the plot.
The brief: independent living without overwhelming the garden
In this example, the homeowners wanted a self-contained annexe for an elderly parent. The garden had a usable buildable area of approximately 8.2m by 4.8m, with a rear boundary close by, mature planting to retain and narrow side access from the front of the property.
The annexe needed a comfortable bedroom, accessible shower room, kitchen area and living space, with its own entrance and a small private terrace. It also had to remain visually subordinate to the main house. The family did not want a temporary-looking garden room or a compromised conversion. They wanted a durable timber building that could support everyday life with dignity and comfort.
This is where small-plot design becomes an exercise in priorities. A larger internal footprint may sound attractive, but it can reduce outside amenity space, create an overbearing elevation near a boundary or make construction access unnecessarily difficult. The better question is not, “How much building can fit?” It is, “What arrangement will work beautifully for the person using it?”
Designing the annexe around movement and light
The proposed layout placed the bedroom and shower room at the quieter end of the building, with the kitchen and living area opening towards the main garden. This arrangement created a clear separation between private and social spaces without relying on internal corridors that consume valuable floor area.
A wide entrance door and level threshold supported easier day-to-day access. Inside, circulation space was considered from the outset rather than added as an afterthought. Door swings, turning areas and the position of kitchen units all influence how an annexe feels to use, particularly where mobility may change over time.
A compact footprint, not a cramped one
The key was to make the main living room work harder. A carefully planned run of kitchen cabinetry sat along one wall, leaving the opposite side free for a dining table and comfortable seating. Full-height glazing faced the garden, bringing in daylight and extending the visual sense of space beyond the building envelope.
This approach has a trade-off. Large areas of glazing can increase solar gain and reduce usable wall space for furniture. On a south or west-facing plot, it may be preferable to balance glazed doors with well-positioned windows, roof overhangs or external shading. The right answer depends on orientation, views and privacy, not a standard layout.
A modest vaulted ceiling in the living area added volume where it mattered most. In a small annexe, ceiling height can be as valuable as floor area, provided the roof form remains appropriate for the site and local planning context. It gives the central room a sense of generosity without forcing the building to grow outwards.
Making a tight site buildable
The most attractive design can still fail if the construction strategy has not been considered early enough. In this case, narrow side access ruled out assumptions about large deliveries and unrestricted plant movement. The groundwork programme, material handling and installation sequence had to be planned around the property from the beginning.
A timber frame system is particularly well suited to this kind of project. Components can be accurately manufactured and efficiently assembled on site, reducing the period in which a garden is disrupted. However, a compact site still requires careful coordination. Ground conditions, service routes, spoil removal and safe access for the construction team all need to be understood before work begins.
The foundation solution would be selected following site investigation and engineering requirements. There is no single foundation type that suits every garden. Soil conditions, nearby trees, levels, drainage and the building’s loads all affect the decision. A proper survey protects the building’s long-term performance and avoids false economies at the stage where quality matters most.
Protecting privacy at close quarters
On small plots, windows cannot simply be placed wherever the internal layout suggests. The annexe must be pleasant for its occupant without creating overlooking or an uncomfortable relationship with neighbouring homes.
Here, the main glazed elevation was directed towards the family’s own garden. More controlled openings were used on the side elevations, including high-level windows where appropriate. Landscaping helped soften views, while the private terrace was positioned to receive light without becoming exposed.
This is a good example of why a bespoke design process matters. Privacy is not solved by one feature. It comes from the combined effect of orientation, glazing, planting, fencing, internal sightlines and the way people approach the building.
Planning and compliance should shape the design early
An annexe is not simply a larger garden building. Its intended use, relationship to the main dwelling and level of self-containment can affect the planning route. The presence of a kitchen, bathroom and sleeping accommodation does not automatically determine the outcome, but it does mean the project should be assessed with care.
For this representative scheme, the design would be developed alongside planning advice, with attention paid to the annexe’s scale, height, materials, boundaries and impact on the character of the site. Local authority policies vary, and permitted development rights are not a substitute for project-specific professional assessment.
Building Regulations are equally central to the brief. Thermal performance, ventilation, fire safety, structural design, drainage and electrical work all need proper consideration. A residential annexe should be designed for real occupation through every season, not merely for occasional use in fine weather.
At Stomhaus, this is part of The Stomhaus Standard: designing the building, structure and delivery process as one coordinated project. Where the specification requires it, BS3632-compliant annexe solutions can provide an additional benchmark for residential quality, alongside careful engineering and high-performance insulation.
The finish: permanent quality in a garden setting

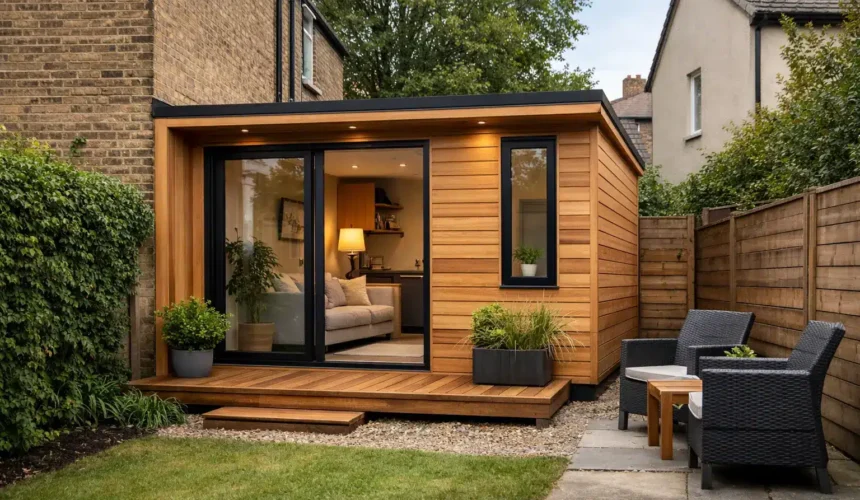

The external material palette was chosen to make the annexe feel like a considered part of the property rather than an object placed at the bottom of the garden. Natural timber cladding brought warmth and texture, while a restrained roof profile kept the building low and elegant.
Timber needs to be specified properly. Species, treatment, board profile, fixing method and exposure to weather all affect how it will age. Some homeowners prefer cladding that silvers naturally; others want a maintained finish with a more consistent colour. Neither choice is inherently better, but it should be made with a realistic understanding of maintenance and the site’s exposure.
Internally, a simple, durable specification supported independent living: easy-clean flooring, well-placed lighting, generous storage and a shower room designed for comfort rather than minimum dimensions. Bespoke does not mean adding features for their own sake. It means selecting the details that improve the building’s use over many years.
What this small plot annexe case study demonstrates
A constrained garden can still accommodate an annexe that feels composed, comfortable and properly built. The strongest result comes from treating the plot as part of the design brief, rather than an obstacle to overcome once a preferred building has been chosen.
For homeowners considering accommodation for a parent, adult child or guest, the most valuable early step is to define how the space will be lived in on an ordinary weekday. Think about arriving home in the rain, preparing a meal, receiving visitors, using the bathroom at night and sitting outside with a cup of tea. Those everyday moments are what turn a compact timber annexe into a place that genuinely supports family life.
