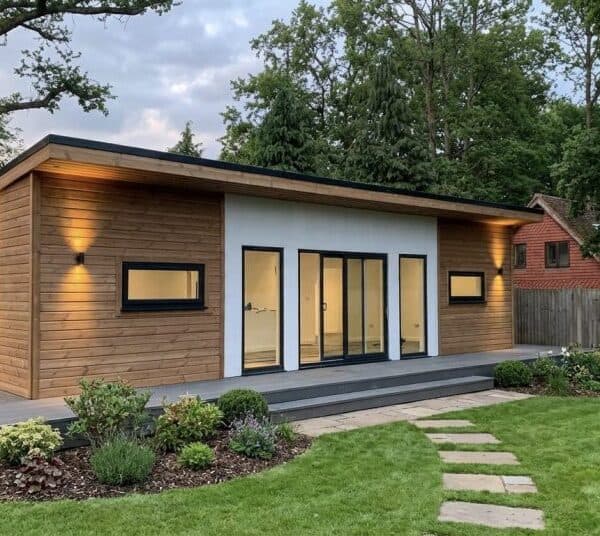

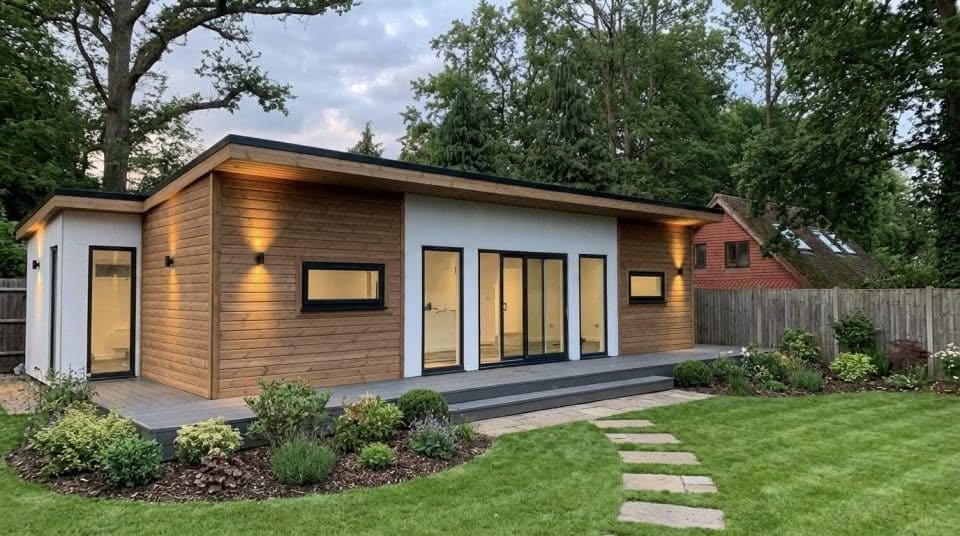

ØRSTÅ 86
Property overview

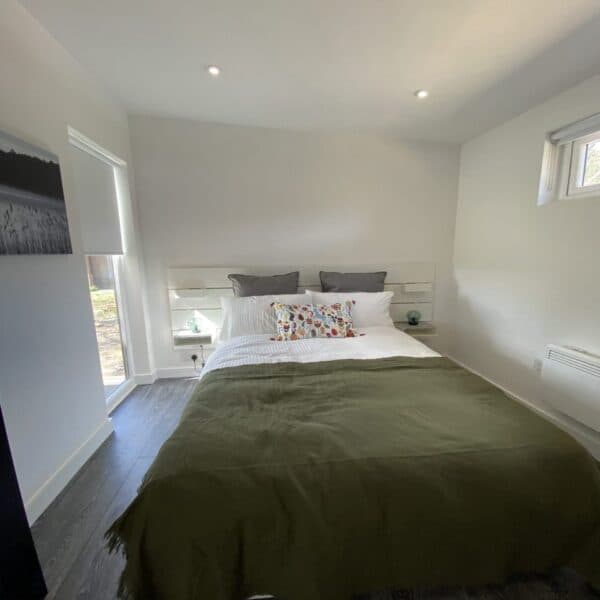

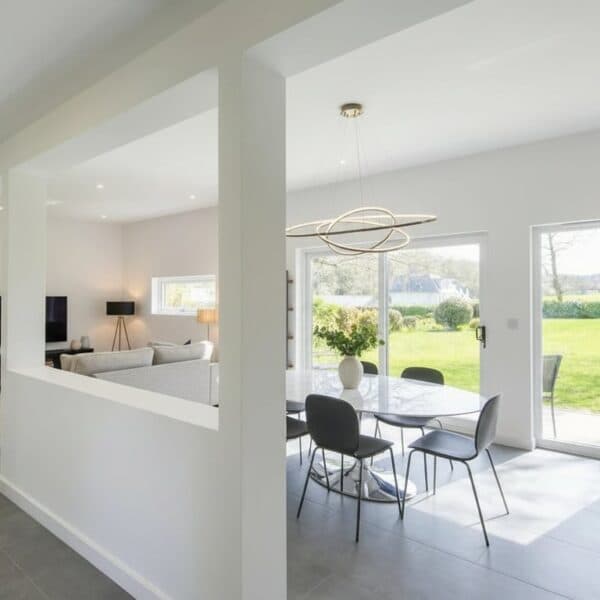

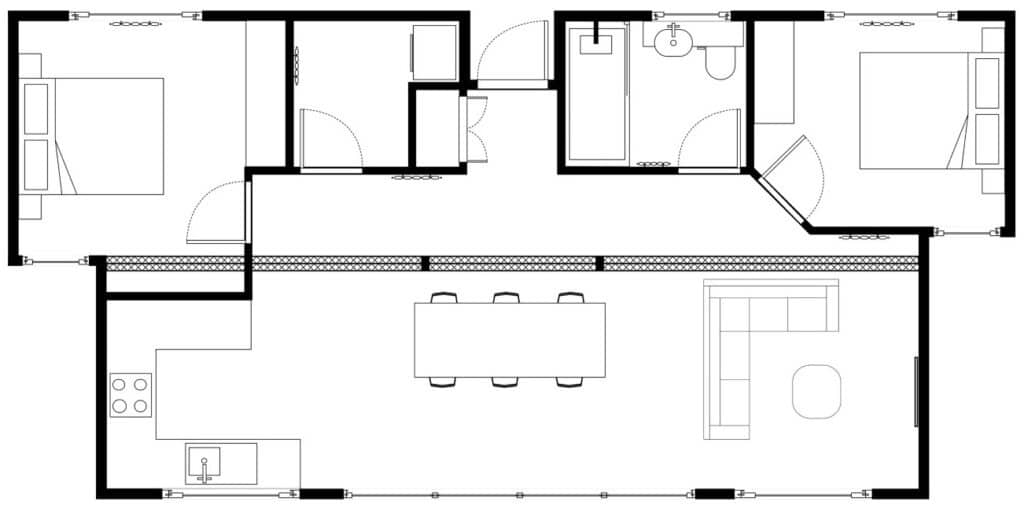

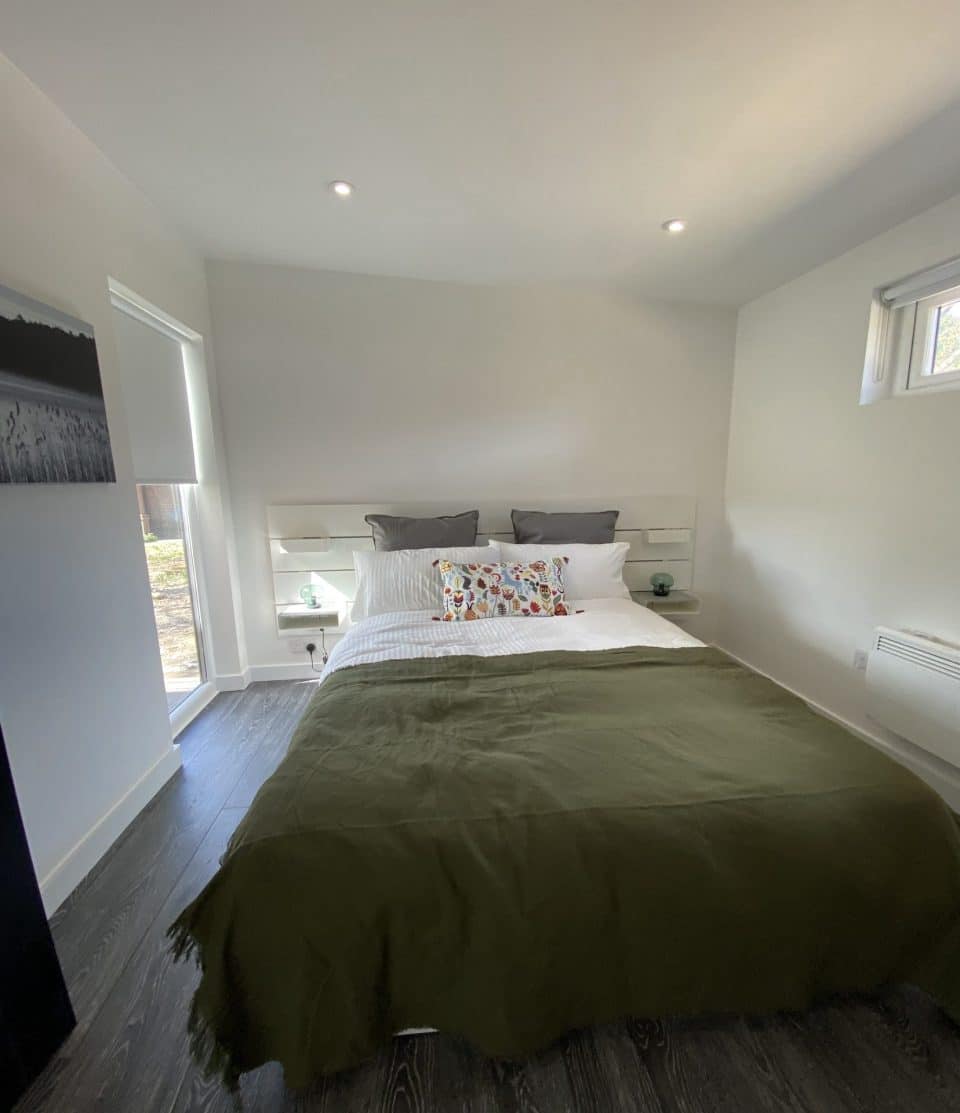

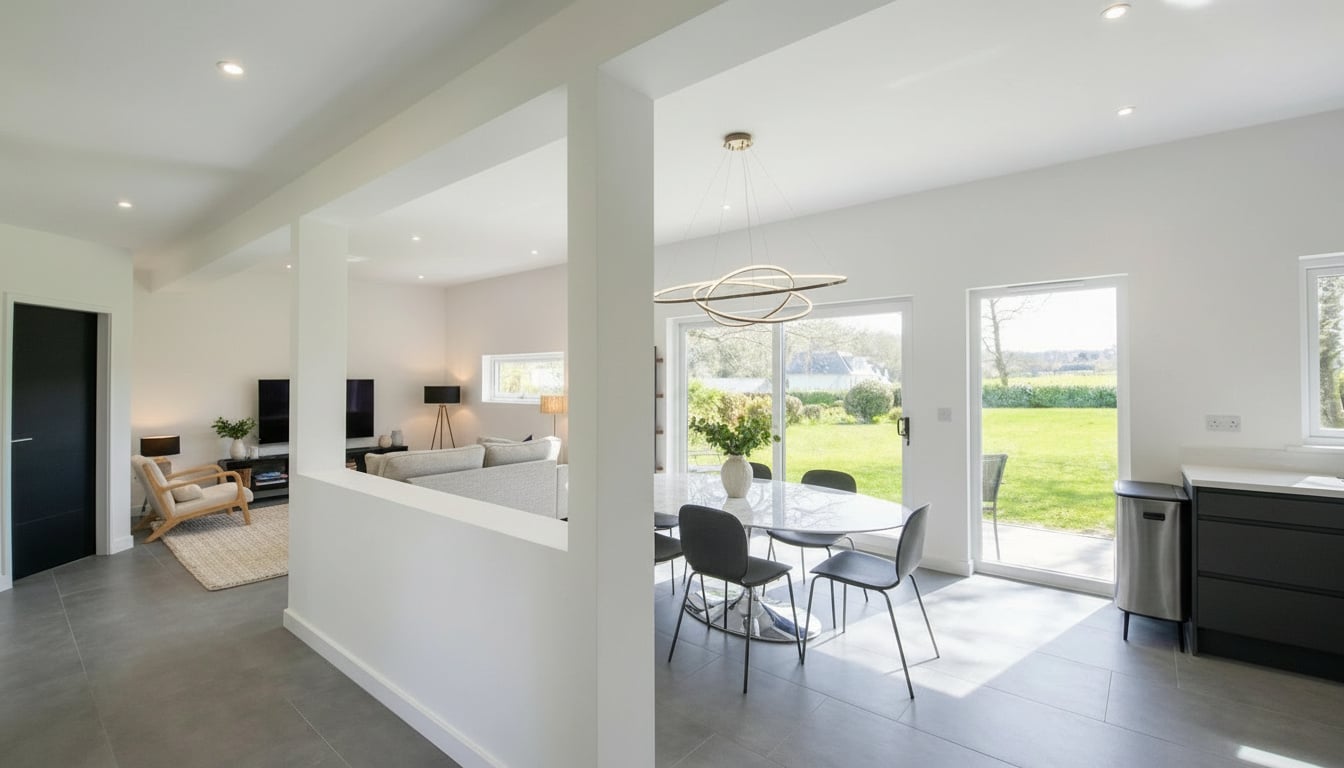

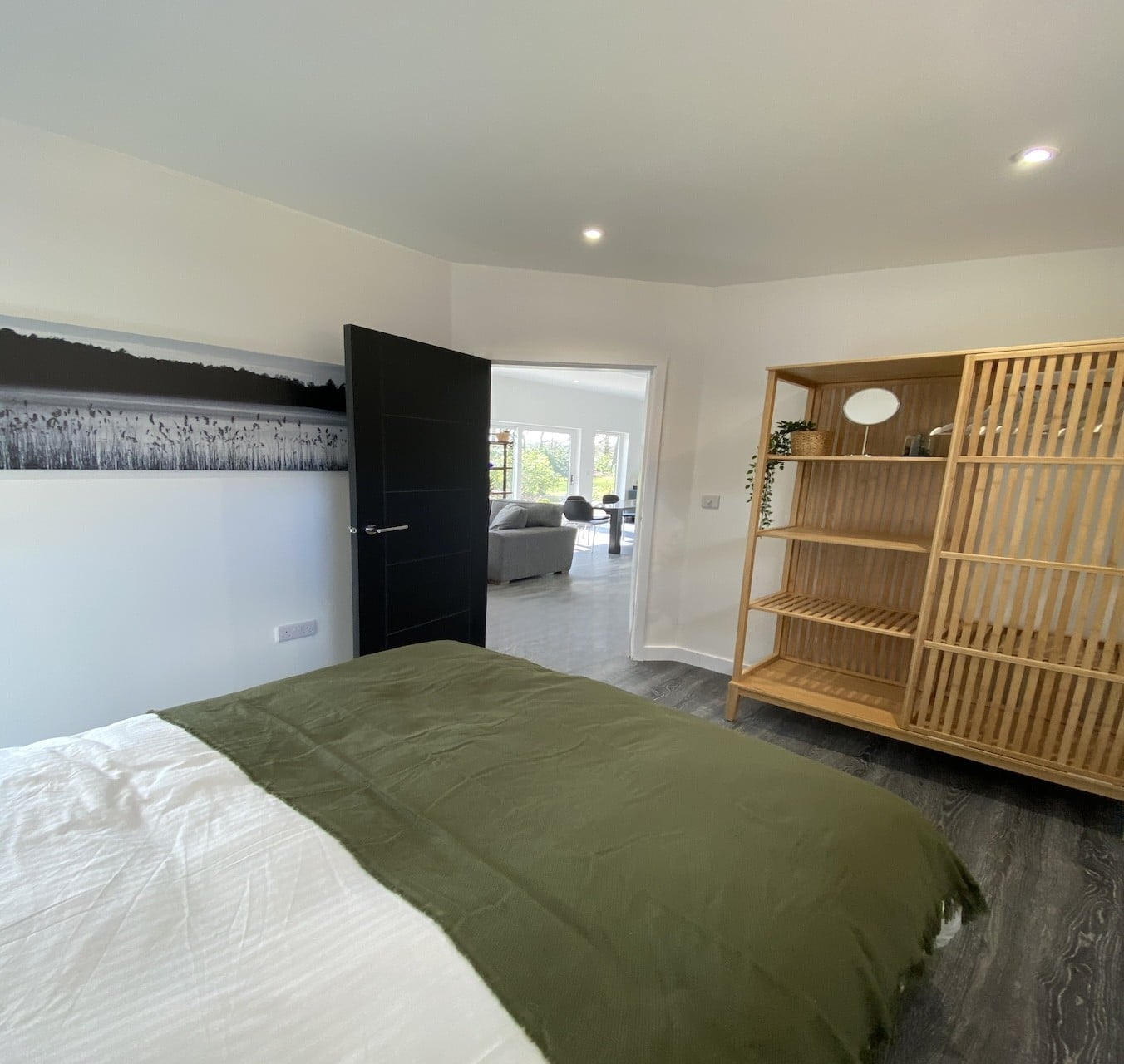

2 Double bedrooms, open kitchen, diner and living space, bathroom and storage & laundry/office.
Ideal holiday park lodge. Spacious, contemporary design.
Supply & erect insulated timber frame panel, including LABC approved piling foundation* and insulated timber frame base, Kaberdeck sub-floor.
Area:
86 sqm.
External Dimensions:
Length: 14.0m x Depth: 6.7m x Height: 3.2m / 3.05m internal
Rooms
5
Year Design
2025
Turnkey package includes:
- LABC approved screw pilings(foundation)
- Full installation by our experienced team.
- Scandinavian PEFC sourced timber framed construction.
- PIR insulated throughout.
- 242mm base frame / 220mm external walls / 250mm roof cassettes.

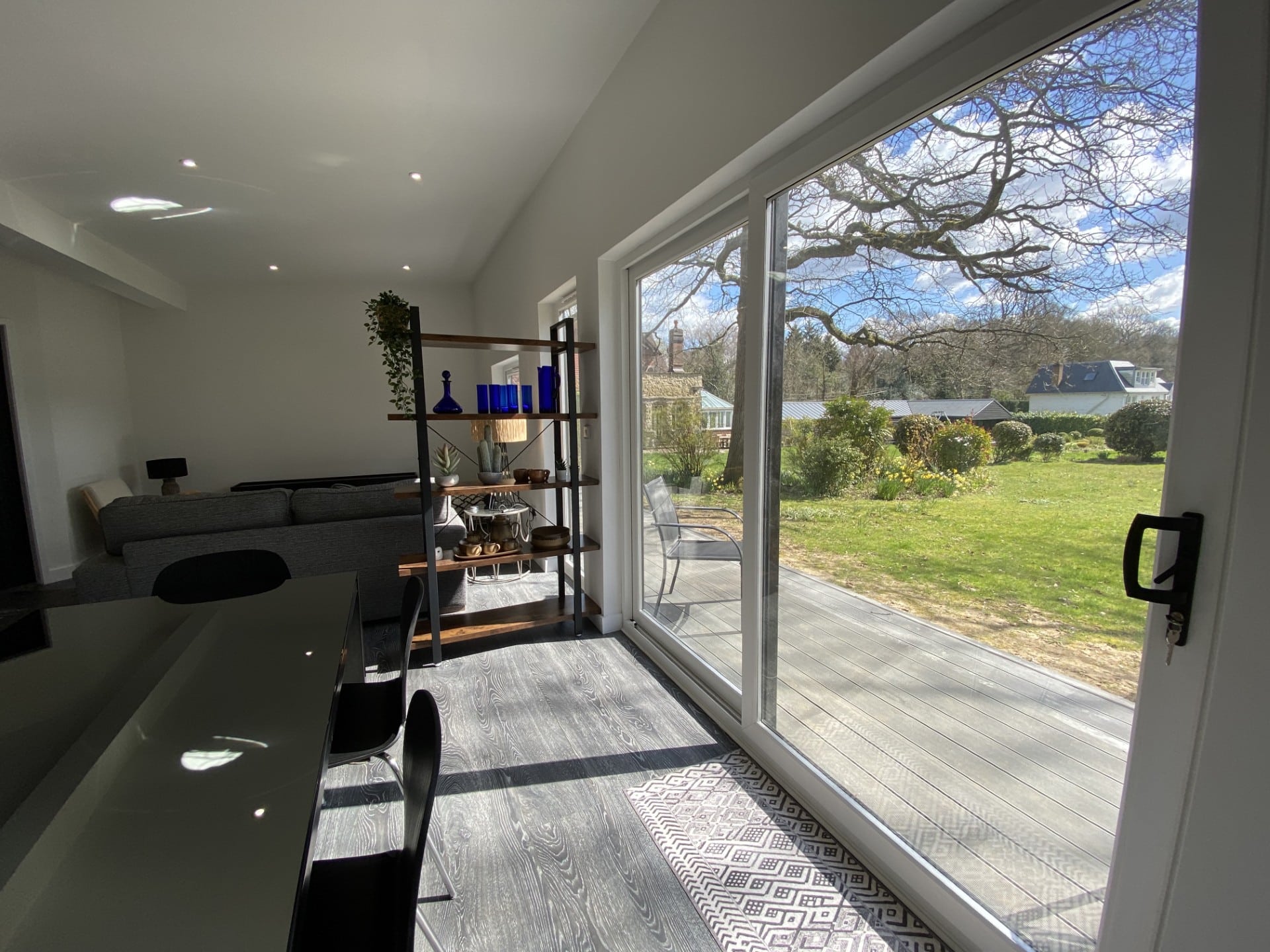

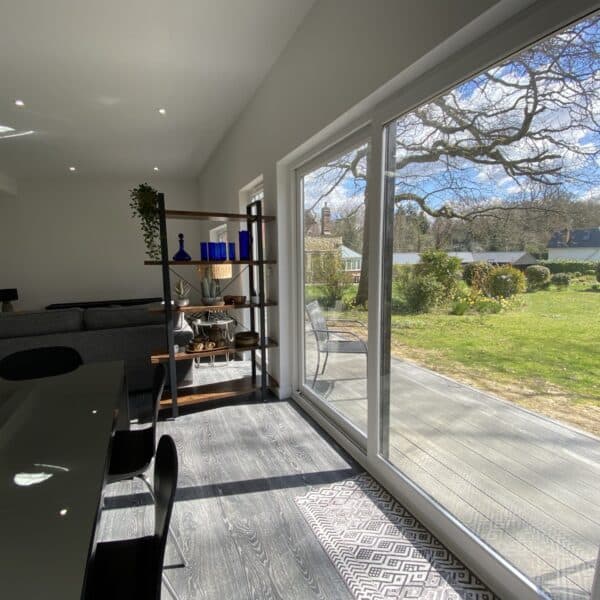

- Double glazed uPVC doors and windows. (Aluminium available at extra cost)
- EPDM (Rubbercover) roof membrane, metal profile or (Standing seam available at extra cost)

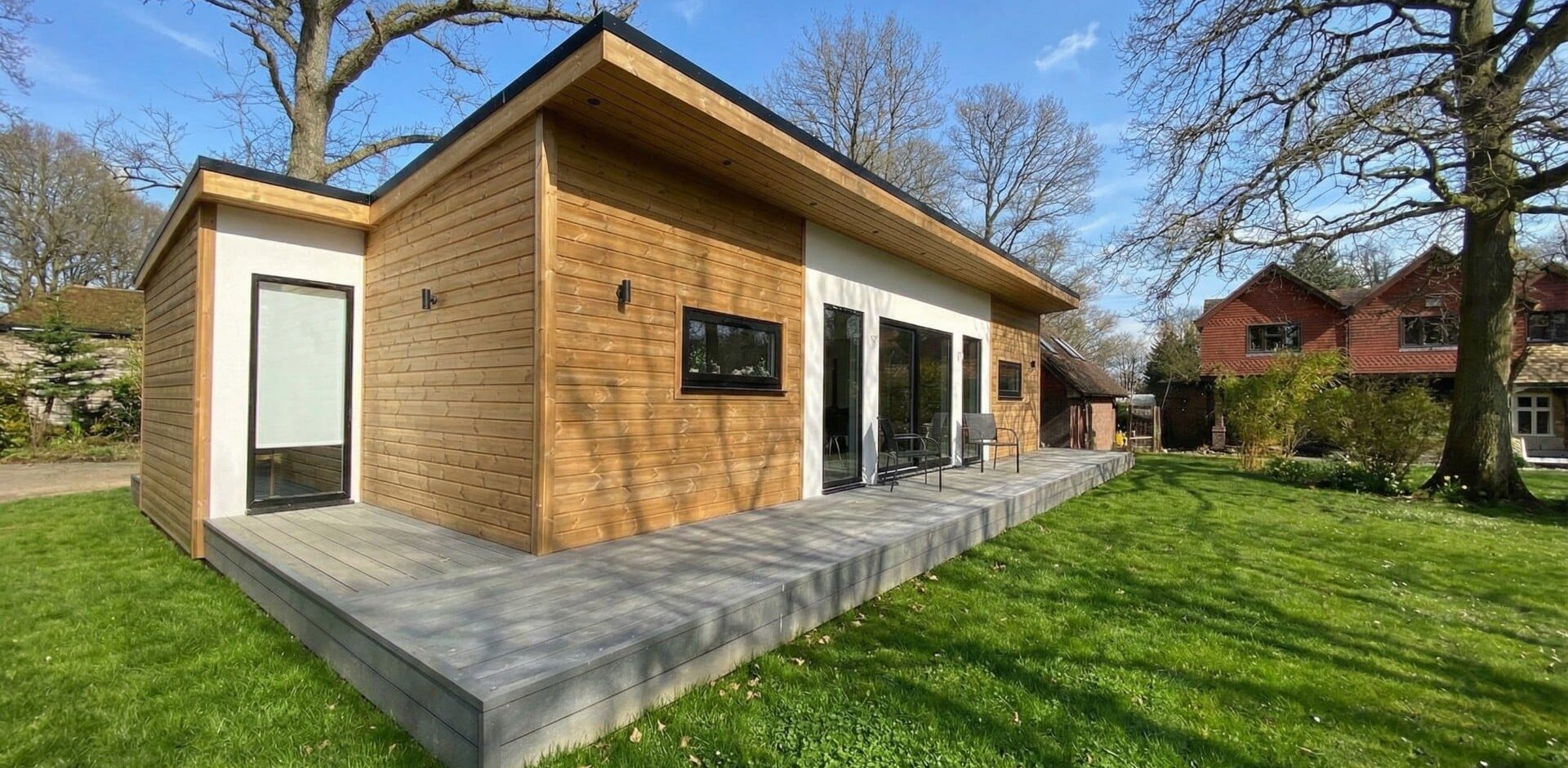

- Siberian Larch, Finnish redwood cladding (American Red Cedar / Composites / metal siding at extra cost)

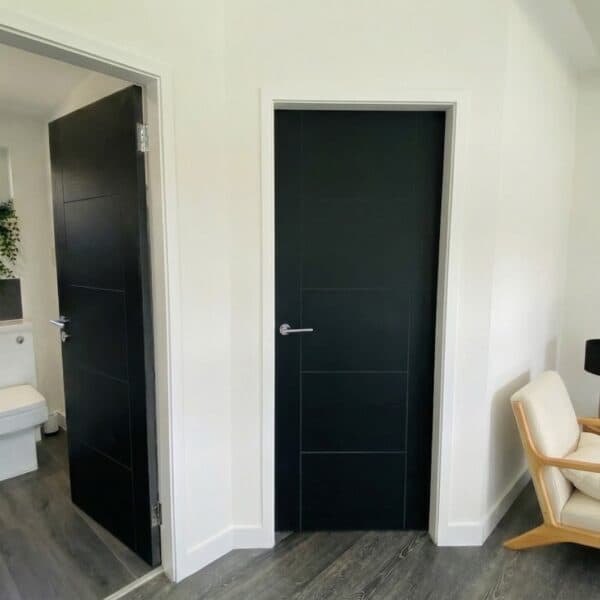

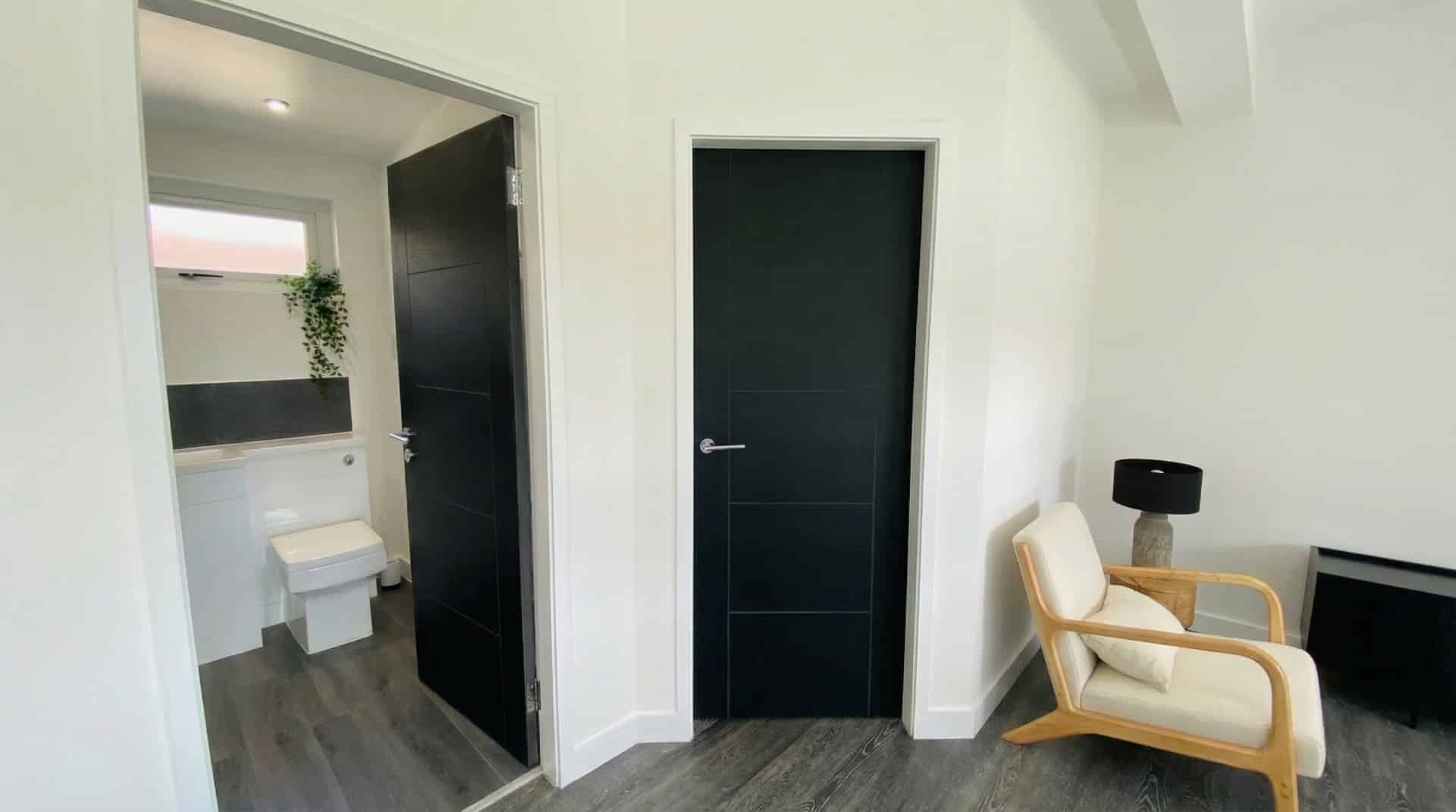

- Includes kitchen**, bathroom(s)***, engineered internal doors & door furniture, skirtings & architraves, Kronotex Mammut wooden flooring, electrical & plumbing installation with certification. Dimplex electric panel heaters.

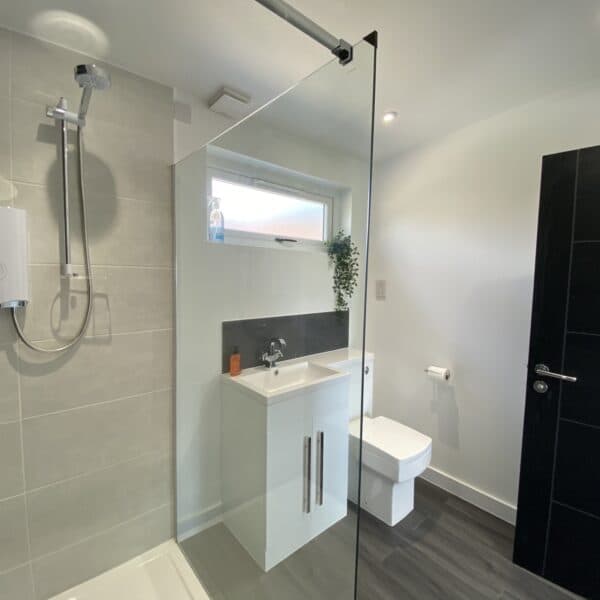

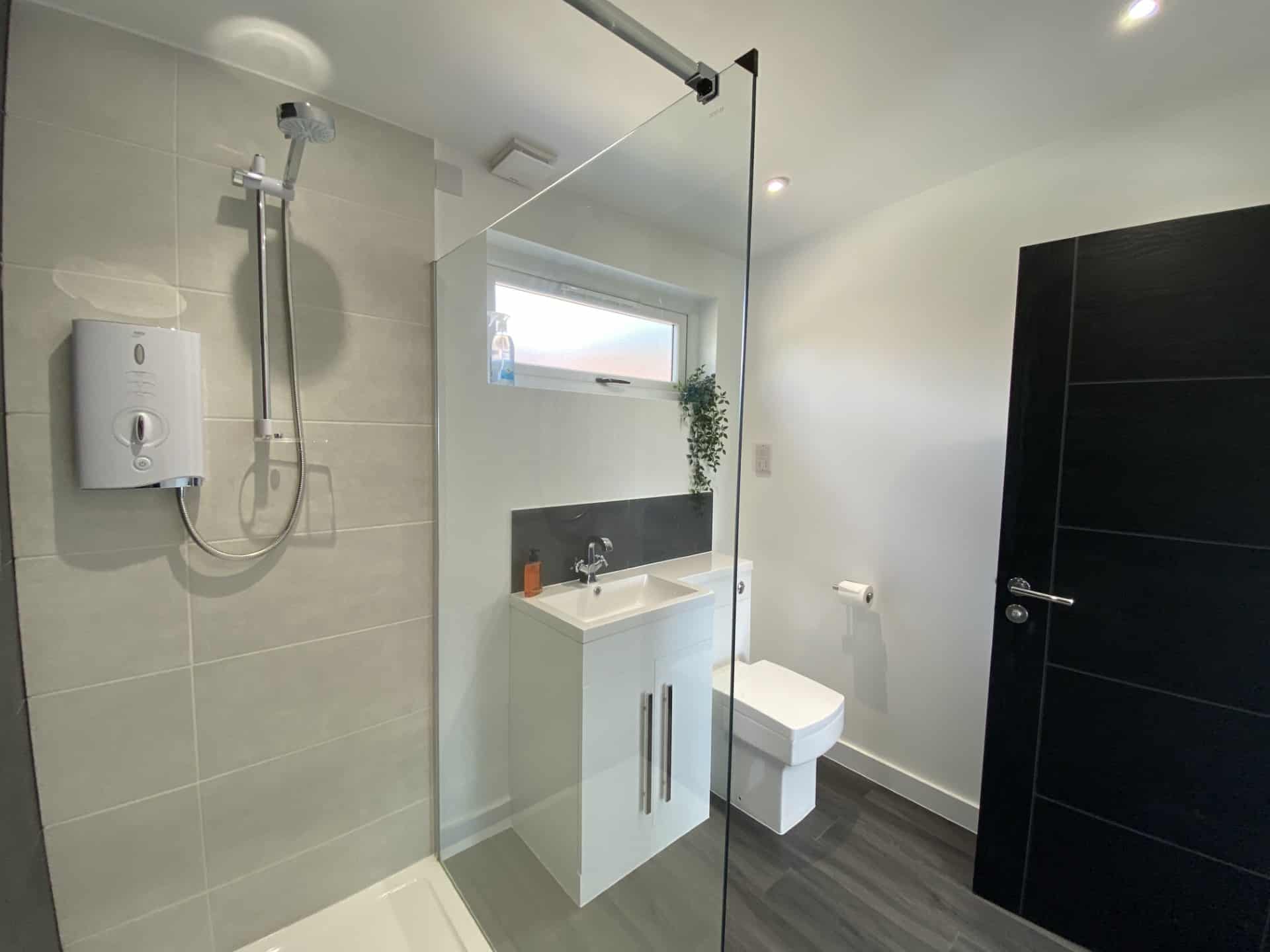

***Bathrooms – low profile shower tray, fixed screen, thermostatic shower valve or Mira sport electric shower, toilet, wall hung basin and mixer, towel/room heater, tiled floors, and shower areas.

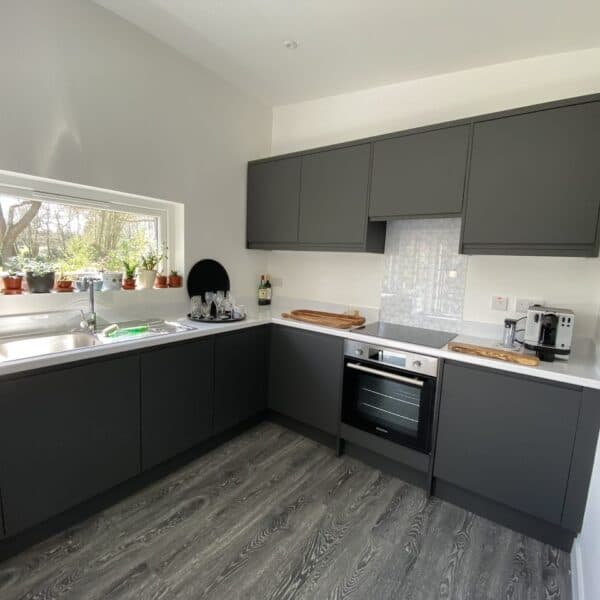

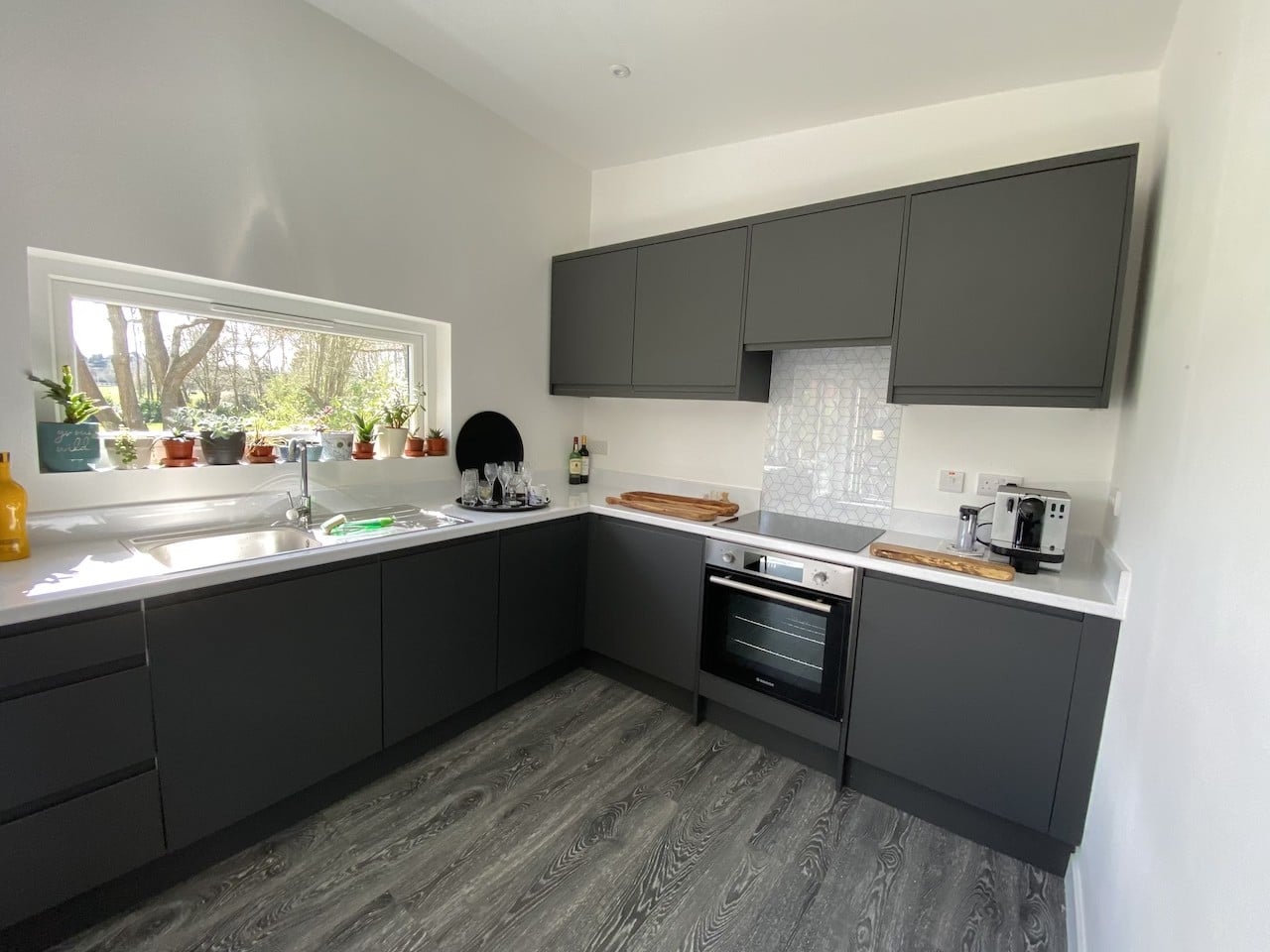

**Kitchens – Units x 8 (model dependent), laminate worktops, Bosch® single fan oven, induction Hob & extractor, Franke® sink and mixer tap, integrated fridge freezer.
Price excludes site preparation(levelling) and utility runs and is subject to survey.
Aluminium on request*
Metal steel profile or standing seam on request**
Benefits of Timber Frame
- Bespoke designed and engineered
- Off-site construction
- On-site speed
- Energy efficient
- Environmentally sustainable
- BS3632 Compliant (caravan act)
- UK building regulations compliant
